Page 29

Modeling a Mountain Bike

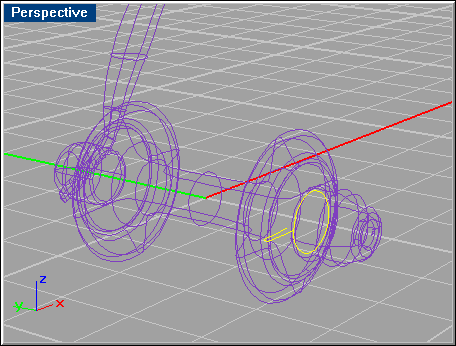

Make a ‘Sweep 1 Rail’ for the curves shown in below.

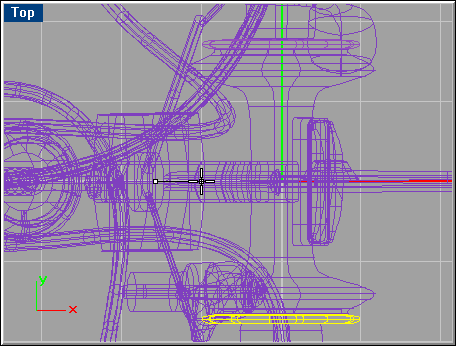

Mirror the resulting surface to the other side using Object Snap ‘Cen’ as described below:

Revolve the curve shown below:

Select all the surfaces and Polysurfaces created from the curves in the current layer, and create a new layer called ‘Details-2’ and move these into that layer.
