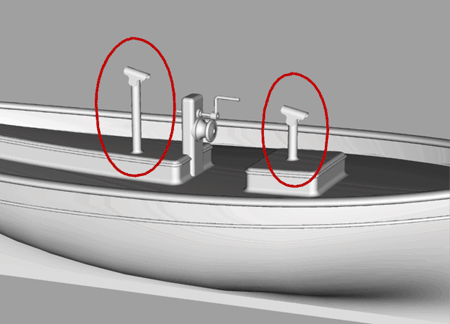

Page 23 Modeling a Sailboat: Deck Detail / Stacks

If you turn on the 'deck curves' layer you will find the reference circle shown highlighted below. As mentioned before, you can use the reference curves at anytime.

From the top view, draw a Circle, Extrude it a 'Distance' of 55 (Surface/Extrude/Straight) to form the stack and in the front view drag it into place going the the background image.

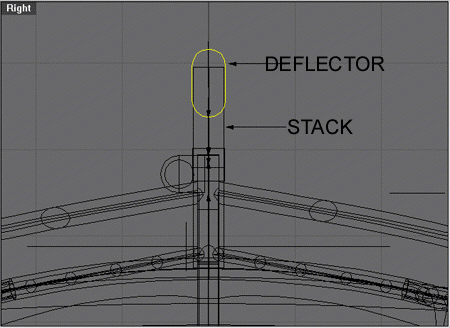

From the right view draw a Rectangle with the 'Rounded' option. Make it little wider than the stack and have it start above the top of the spark deflector.

From the right view Extrude (Surface/Extrude/Straight) with 'Cap=No' a 'Distance' of 20 units.

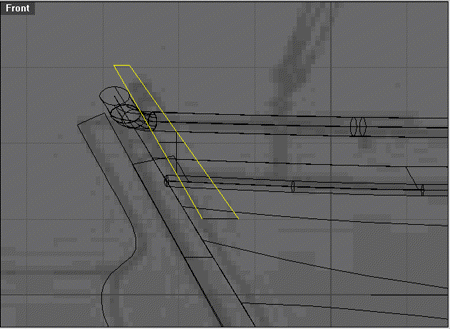

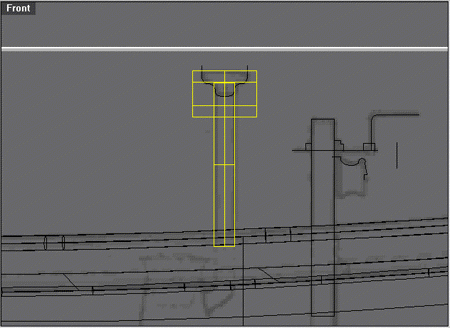

From the front view drag the stack and deflector into position shown below.
