Page 35

Modeling a Sailboat: Rigging / Sails

In the perspective view hit Rotate3d and with 'end' osnap turned on, select the top and bottom of the foresail and enter 25 for the angle. Repeat for the smaller staysail with a angle of 20.

Let's put some shape in the top and main sail also.

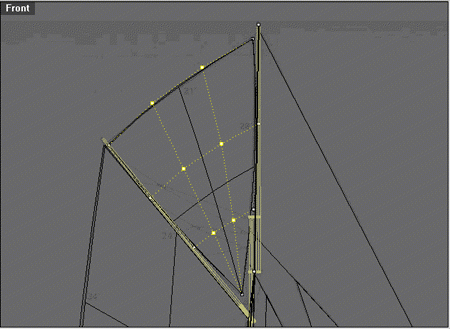

Show control points PtOn on the topsail and select with the lasso the six middle control points and in the right view move them about 15 units.

On the mainsail select the four control points in the middle and the two control points in the middle of the back edge and lower edge, shown above, and in the right view move them 20 units.
