Modeling a Brachiosaurus: Completing the Head

To model the nostrils, insert 4 isoparms as shown below (make sure ’Symmetrical=Yes’ when inserting the two in the V direction).

.

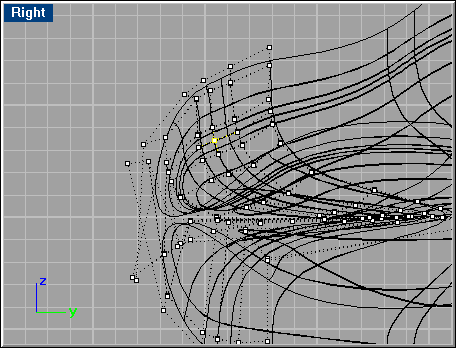

Pull the CV’s shown below inwards until you get convincing nostrils.

The final result of the head after this step your scene should be similar to the sample file ’brachio6.3dm' from the dino directory of the CD-ROM.
