Selecting and moving the circle

You need to select the circle to move it into place. At first glance this seems impossible because a select last command is missing in Rhino, but remember the command alias lastcreated or insert the mini command file this selects the entity you made last, in this case the circle. Type lastcreated into your script.

Your script should now read:
! rectangle
0
10,15
! Circle
0
d
2
Lastcreated

Test the command script by highlighting and copying the text from Notepad, activate top view and click the commandpaste icon. This should build the rectangle and circle and then highlight the circle. Check figure004. Select all and then delete to clear the model.

Now you move the circle into place using the move command
0 Rhino moves the circle from 0,0,0 coordinate point
5,7.5 Rhino moves the circle to this 5,7.5 coordinate point

Your script should now read:
! rectangle
0
10,15
! Circle
0
d
2
Lastcreated
move
0
5,7.5

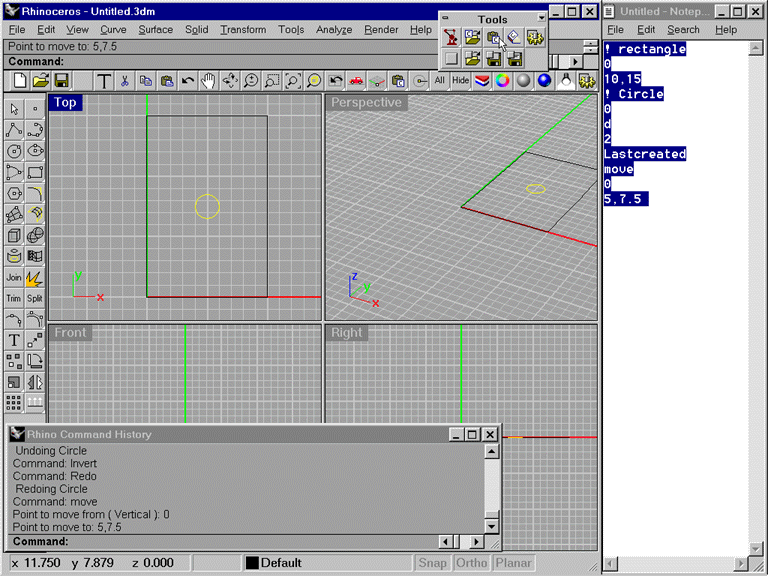

Test the command script by highlighting and copying the text from Notepad, activate top view and click the commandpaste icon. This should build the rectangle and move the circle into place. See image below. Select all and then delete to clear the model.
