Entablature and Roof plus Tuscan Columns Script

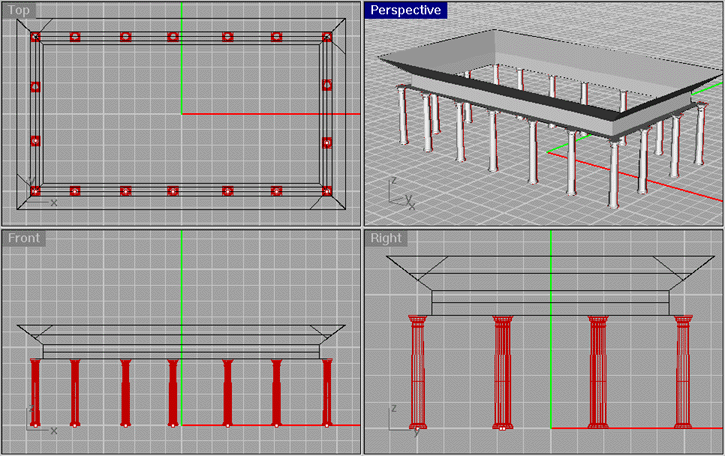

Now add the simplified columns to the simplified entablature

  1. Copy the script in the left hand column below.
  2. Make sure perspective viewport is active.
  3. Run the script by clicking the commandpaste icon.
  4. Quick and full render the model if you wish.
  5. Select all and delete to clear the workspace for the next step.

! merge
c:\tutorialscripts\entablature\entabprofile04.3dm
selcurve
sweep1
enter
selcurve
delete
selnone
all
! Hide
! merge
c:\tutorialscripts\columns\tuscancol01.3dm
copy
w0
-9.37803,-4.96942,0
-9.37803,-1.73372,0
-6.82304,-4.96942,0
-3.57283,-4.96942,0
-0.522624,-4.96942,0
2.97761,-4.96942,0
6.12782,-4.96942,0
9.37803,-4.96942,0
9.37803,-1.84309,0
! delete
! SelMesh
! Mirror
0,0,0
12,0,0
enter
! selnone
! show
