Page 21 Modeling a Tank: Assembly

SelLayer the 'wheel' and 'fender' layers and in the front view Mirror them over to the right. Shown in progress below.

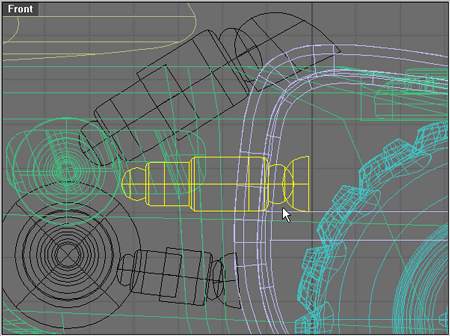

Zoom in to the center of the front view to get the hydraulics lined up to the fender as follows.

Select the hydraulic and the hinge for it.

Drag, Copy, Scale and Rotate them to the positions shown below

In the top view select the lower hydraulic and hinge and drag it down about 2 grids.
