Page 34 Modeling a Tank: Cannon

Hit SelSrf and JoinSrf.

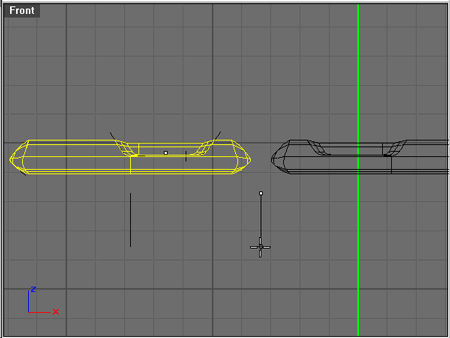

Select the new PolySurface and hit Mirror and use the guide curve as the axis. Shown in progress below.

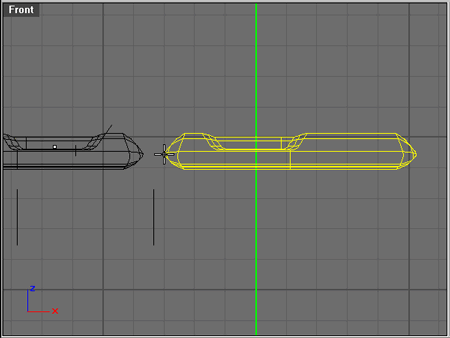

Hit Scale2D from the front view and select the point indicated by the crosshairs as the origin point and type in .76 for the scale factor.

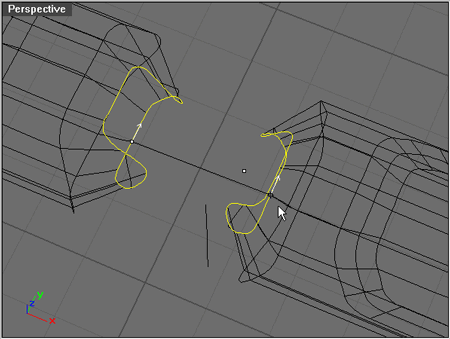

Hit Loft and select the surface edges to connect the front and back parts of the cannon. Shown in progress below.

Hit SelSrf, SelPolySrf and JoinSrf.
