|Page 40||Modeling Trog: Head / Crest|

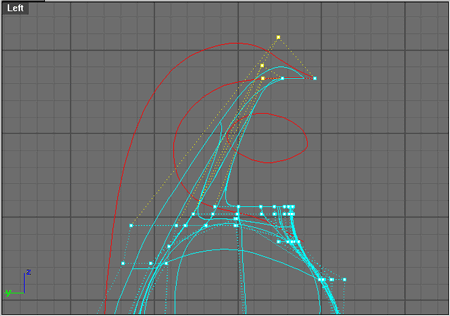

Hit expand selection SelConnected and de-select the previously selected points and Rotate the currently selected points with the 'Center of rotation' being positioned approximately at the lower part of the eye and type in 120 or swing to position as shown below. Readjust by dragging the selection if necessary.

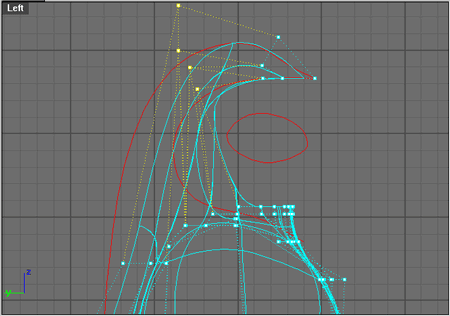

Hit Expand Selection SelConnected and de-select all the previously rotated and repositioned points and Rotate with the 'Center of rotation' being positioned at the center of the eye and type in 90. As shown below.

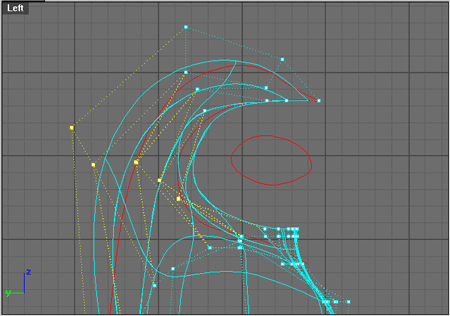

Hit expand selection SelConnected one more time and de-select all previously rotated in repositioned points in Rotate with the 'Center of rotation' being at the back of the eye and type in 60 as shown below

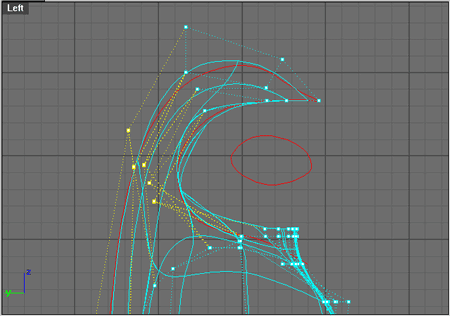

Hit Scale1D and scale the selected points in towards each other from the center until they approximately match up to the profile curves. As shown below. The points that were rotated in step 6 may also need to be Scale1D closer together.
