|Page 47||Modeling Trog: Head / Upper Beak|
In the left view select the newly created curve and hit EditPtOn and select the middle points. Be sure CullCp is off. And drag the points so the curve approximates the profile curve as shown below.

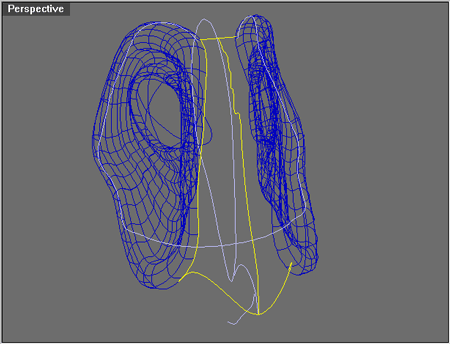

Right click PtOff and hit Sweep2. When prompted for the rail curves pick the top and bottom newly created curves. When prompted for the cross-section curves, pick the edge of the left baggy eye then the profile curve and then the edge of the right baggy eye, as shown below in progress before the last pick. Layer color is change for clarity.
In the Sweep 2 Rails Options dialog box pick 'Do not simplify' option and hit OK. Results shown below.
